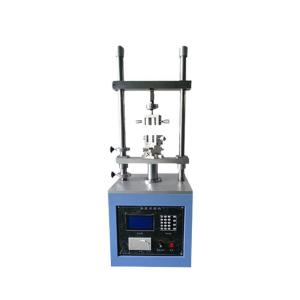

LR-Q023 Vertical Insertion Force Testing Machine Insert Remove Forcing Tester
1. Product Description
The vertical plug-in force testing machine is a newly developed testing equipment. This device is an advanced testing equipment used to test the plug-in and plug-out durability of component pins and mother pins. It simulates the manual insertion and extraction of test component pins and mother socket pins, accurately and effectively conducting the plug-in and plug-out life tests. It adopts high-brightness LED liquid crystal display technology to accurately display the maximum force and the current force value during the plug-in process. It also has an overload protection function, with high reliability. Thus, it reduces the human resources of customers and improves the quality of products. This equipment has been highly praised by a wide range of customers.
2. Specification
|
Model |
Vertical type |
|
Capacity |
50kg (optional) |
|
Travel range |
0 - 150mm (adjustable as needed) |
|
Uses large-screen LCD for displaying values |
|
|
Transmission structure |
Ball screw |
|
Can save insertion force data in 10 groups separately |
|
|
Counter |
0 - 999999 times |
|
Weight units can be manually converted to |
KG, N, IB |
|
Comes with a mini printer (with Chinese printing) |
|
|
Size |
Approximately 350 × 320 × 950mm |
|
Power supply |
220V, 50Hz, 2A |
