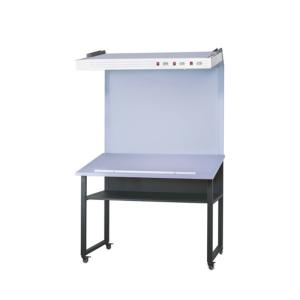

ISO 3664 Light Source Sample Viewing Table Printing Light Source Sample Inspection Platform Test Equipment
Introduction
The standard light source sample viewing table is suitable for printing workshops or proofing centers with high environmental requirements. It is elegant and stylish. It can be used by printing factories such as offset printing, flexographic printing, and gravure printing, and can directly view the reflected manuscripts.
Simple Troubleshooting
1. Turning on the switch but the light source does not illuminate:
Is the power cord in good condition and properly plugged into the socket?
2. The retaining clips of the lamp tube base may be loose. Tighten them.
3. Check if the lamp tubes are damaged or burned out. Replace the lamp tubes if necessary.
II. Poor Reflection on the Board Surface:
Wipe clean with a clean and soft cloth
III. The light source counter does not count:
Press the reset button and restart now.
Installation instructions
Technical Specification
| Light source | Compliant with the ISO3664 international standard |
| Color temperature type | D50 (5000K) or D65 (6500K) |
| Lamp Tube Series | Specifically for Graphica imported printing machines |
| Color Rendering Index | CRI = 98 - High color rendering index |
| Number of lamp tubes | 36W × 4 (pieces) - with light source timer |
| Material | Made of pure metal, with solid materials used. |
| Workbench cabinet | Overall metal structure, thick sheet metal, sturdy and stable. One layer of storage cabinet with a shelf, no drawers. |
| Operation surface | The surface is designed with an incline, which conforms to the visual observation habit. |
| Hanging light source | Made of aluminum alloy profiles, with a streamlined design, it is elegant and stylish. It features imported reflective panels and a uniform light cover plate, ensuring even illumination. |
| Dimensions | Large double-opening size, easy to operate |
| Boundary Dimensions | 1350mm × 900cm × 2174mm (length × width × height) |
| Table surface size | 1350mm × 900mm (width × length) |
| Vertical surface dimensions | 1350mm × 2174mm (width × height) |
