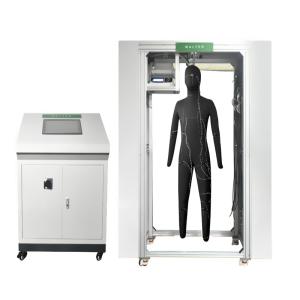

ASTM F1291 1720 Warm Body Sweating Dummy Tester Human Body Heat Exchange Simulation Test Machine
Introduction
The warm body sweating dummy tester can simulate the heat exchange processes of conduction, convection, radiation between the human body, clothing and the environment, as well as the moisture exchange process of sweating in a set environment. It scientifically evaluates the thermal performance of the clothing or the environment as a whole, avoiding the need for human testing, achieving dataization, standardization of the perception results, high experimental accuracy, good repeatability, and can guide the research and production of functional fabrics and clothing. It can also be used to analyze the impact of the environment on human comfort and obtain the environmental conditions that meet human comfort requirements.
Compliant with standards
GB/T 39605-2020 "Test Method for Clothing Moisture Resistance - Sweat-Warming Dummy Method"
GB/T 18398-2001 "Test Method for Clothing Thermal Resistance - Human Body Dummy Method"
ISO 15831:2004(E) Clothing. Physiological effects. Measurement of thermal insulation performance using thermal manikins
ASTM F 1291-04 - Standard Test Method for Measuring the Thermal Insulation Properties of Clothing Using a Heated Dummy
ASTM F 1720 - Standard Test Method for Measuring Insulation of Sleeping Bags Using Warm Dummy
ASTM F 2370 - Standard Test Method for Measuring the Anti-Evaporation Properties of Clothing Using Sweat-Producing Dummies
Technical specifications
|
Operation mode |
Automatic |
|
Material of the human model |
Epoxy resin |
|
Section |
15 or more anatomical segments including the head, neck, chest, abdomen, back, buttocks, limbs, etc. (customizable). Rotatable joints are set at the neck, shoulder, elbow, buttocks and knee areas. |
|
Test temperature range |
10 - 55℃ |
|
Temperature control uniformity |
±2℃ |
|
Temperature control accuracy |
±0.1℃ |
|
Temperature control stability |
±0.5℃ |
|
Heating power |
0 - 2000W, accuracy ≤ 1% |
|
Measurement frequency |
50Hz |
|
Control mode |
22 or more temperature sensors, with an accuracy of ±1℃, 10 or more humidity sensors, with an accuracy of ±3%, (customizable) |
|
Body dimensions |
Height 170 ± 10 cm, Weight 75 kg |
|
Heating control |
Electric heater heating |
|
Working modes |
Constant temperature test, variable temperature test, constant power test, variable power test |
|
Sweating system |
0 - 2000 ± 50 grams per hour |
|
Walking speed |
Speed 0 - 100m/min (continuous variable, customizable), stride 0 - 70cm/step |
|
Test environment |
Ambient temperature: -20 to 80℃, Ambient humidity: 0 to 100%RH |
|
Test postures |
Standing posture, sitting posture, walking posture |
|
Power Supply |
220V 50Hz |
|
Weight |
350kg |
|
Size |
900 × 900 × 2200 mm |
