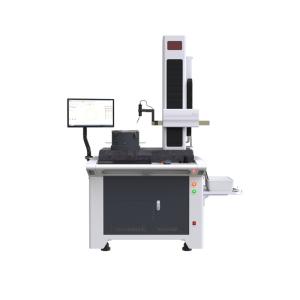

The sensor automatically makes contact, and it can accurately position the sensor at the desired location.
The independently developed high-precision and large-range sensor has a reasonable structure and is durable.
The rotating shaft system adopts a precision air-floating spindle. The final process is pure manual grinding. The strict grinding process and superb grinding skills effectively ensure the rotational accuracy of the spindle.
Technical Parameters
|
Rotary Worktable |
Rotation Accuracy |
(0.025 + 6H/10000) μm |
|
|
Rotation Speed |
6 rpm |
|
|
Effective Diameter of Worktable |
240 mm |
|
|
Maximum Measuring Diameter |
300 mm |
|
|
Maximum Swing Diameter |
450 mm |
|
|
Table Load Capacity |
30 kg, 60 kg (optional) |
|
Vertical Axis |
Vertical Movement |
420 mm, 620 mm (optional) |
|
|
Movement Mode |
Electric |
|
Horizontal Arm |
Horizontal Movement |
165 mm |
|
|
Overhang |
25 mm |
|
|
Horizontal Movement Mode |
Electric |
|
Detector |
Acquisition Device |
Circular Grating |
|
|
Number of Circumferential Sampling Points |
8192 |
|
|
Sensor Type |
Inductive Sensor |
|
|
Sensor Measuring Range |
±300 μm |
|
|
Sensor Resolution |
Up to 0.001 μm |
