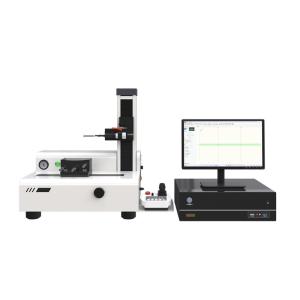

Rapid And Efficient Straightness Measuring Instrument Linear Contour Measurement Machine
The rapid and efficient straightness measuring instrument is designed for speed and efficiency.
The rapid and efficient straightness measuring instrument can complete the clamping of the part within seconds; its outstanding accuracy and stability provide strong support for rapid measurement, and it can complete the measurement of the part within seconds!
Equipped with the latest independently developed motion control system and intelligent analysis software, it optimizes the real-time performance and reliability of data transmission, quickly generating precise measurement reports and visual charts, achieving an astonishing performance where the measurement results can be obtained immediately upon completion without any further operations.
Strong vibration isolation capability, supported by precise air-floating guide rails, ensures high measurement stability. The in-depth cooperation and application of various preferred components have shaped the fundamental genes of rapid and efficient measurement and simple operation, enabling this machine to be suitable for on-site applications.
Technical Parameters
|
Measurement Range |
X-axis |
≥100 |
|
Z-axis |
≥150 |
|
|
Z1-axis |
±200μm |
|
|
Movement Speed |
X-axis |
10mm/s |
|
Z-axis |
10mm/s |
|
|
Guideway Straightness |
X-axis |
≤0.25μm/50mm |
|
Resolution |
Z1-axis |
0.01μm |
|
Measurement Direction |
Bidirectional |
|
|
Automatic Contact Function |
/ |
|
|
Contact Direction |
Bidirectional (Up and Down) |
|
|
Automatic Program Measurement |
/ |
|
|
Automatic Marking Function |
Yes |
|
|
Measurement Speed |
0.2mm - 5mm/s |
|
