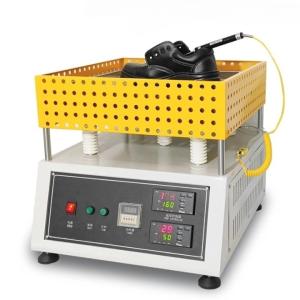

EN 12568 ANSI Shoe Sole Heat Resistance Testing Machine JIS CSA Heat Insulation Performance Tester
Main functions
The shoe sole heat resistance testing machine tests the heat resistance and heat insulation performance of the finished shoes under a high-temperature sandy and rocky heat medium.
Reference Standards
EN12568, ANSI, JIS, CSA, GB12017—1989, GB/T 20991-2007, LD50—1994, etc.
Instrument features
Surface treatment of the body: Utilizing DuPont powder from the United States and electrostatic spraying technology, and subjecting it to high-temperature (200℃) curing to ensure long-lasting color retention.
The mechanical components are composed of non-corrosive structures and stainless steel.
Intelligent PID thermostat, precise temperature control, stable performance;
The double-layer protective insulation material has a remarkable heat-blocking effect.
High heat generation speed, corrosion-resistant, all-copper heating element;
Industrial timer, with high precision and clear digital display.
Technical specifications
|
Temperature range |
RT - 15℃ or RT - 250℃ |
|
Size of sand bath box |
(40 ± 2) cm * (40 ± 2) cm, with a height of 8 cm |
|
Stainless steel balls (diameter 5mm) |
Total mass: 4kg; serve as the heat transfer medium |
|
Temperature sensor (accuracy ±0.5℃) |
Welded onto a copper disc (thickness: 2 mm ± 0.1 mm; diameter: 15 mm ± 1 mm) |
|
Power |
2500W |
|
Voltage |
AC 220V, 15A |
|
Dimensions |
450*510*340mm |
