BGD 240 ISO 3680 Automatic Flash Point Tester ASTM D3278 ASTM D3828 Paints Flash Point Testing Machine
What is the Flash Point?
Flash Point is the lowest temperature, as measured in the prescribed manner, of the test portion corrected to a barometric pressure of 101,3 kPa, at which application of an ignition source causes the vapour of the test portion to ignite momentarily and the flame to propagate across the surface of the liquid under the specified conditions of test.
BGD 240 Automatic Flash Point Tester is designed according to rapid equilibrium closed cup method. It can rapidly test flash point for paints, including water-borne paints, varnishes, binders for paints and varnishes adhesives, solvents, petroleum, and related products.
Standards
It conforms to ISO 3679,ISO 3680,ASTM D 3278,ASTM D3828 etc
Characters
1. Can detect the flash point at a specific temperature between -35 ℃ and 105 ℃ (BGD 240/1)or RT to 300 ℃(BGD 240/2)at average rate heating.

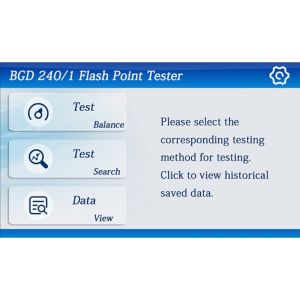

2. All functions are achieved through touch screen and digital display.
3. Built in two test procedures:rapid balanced mode and average rate heating mode
4. Various parameters, such as the heating mode, time, temperature and the average rate heating can be set by the user themselves.
5. Planning board action, the decline of the ignition, the detection of flash point is done automatically.
6. The gas ignition sources can be provided directly by the laboratory, you can also use the portable butane gas tank.
7. Built-in cooling module is used to shorten the cooling time between the two tests.
8. Amend barometric pressure automatically
BGD 240 ISO 3680 Automatic Flash Point Tester ASTM D3278 ASTM D3828 Paints Flash Point Testing Machine
Technical Specification
| Ordering Information → Parameter ↓ | BGD 240/1 Low Temp. Automatic Flash Point Tester | BGD 240/2 Normal Temp. Automatic Flash Point Tester |
| Measurement Range | -35℃~105℃ | Room Temp.(RT)~300℃ |
| Tested Flash Point | ±0.5℃(≤100℃);±2℃(>100℃) | |
| Sample volume | 2ml | 4ml |
| Cooling Method | Built-in cooling module (with external cooling water, flow rate>1L/min) | Air-cooled |
| Heating Rate | User-defined, with a maximum heating rate of 5°C per minute. | |
| Output Interface | USB, U Disc | |
| Operate Temperature | 15℃~35℃ | |
| Power Supply | 220/240V,50/60Hz | |
| Overall Size | 460mm×330mm×350mm(L×W×H) | |
| Net Weight | 15 Kg | |
| Come with Accessories | Steam source regulation component,Silicone tube,injector, Thermometer,O-Type Seal Ring(5pcs) | |
| Optional Accessories | Injector for high viscosity sample,Stand oil of Flash Point | |
