*Profile.*

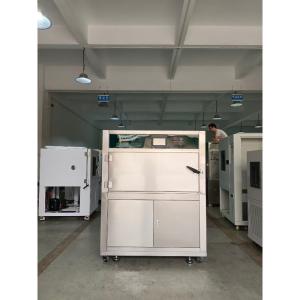

The UV Accelerated weathering test chamber simulates damage caused by solar ultraviolet light, and the material is subjected to weather resistance test by exposing the sample to light under controlled high temperature. It uses ultraviolet light tubes to simulate the effects of sunlight. In just a few days or weeks, the chamber can reproduce damage that can take months or even years outside, including fading, color changes, tarnishing, chalking, cracking, cracking, wrinkling, blistering, embrittlement, strength reduction, oxidation, etc., can be used to select new materials, improve existing materials, or evaluate changes in material formulations. 4 pieces together (UVA-340 and UVB-313 optional).
UVA340 or Ultraviolet light accelerated aging chamber (UV chamber) lab test equipment 1.Main technical parameters
Item	UV Lamp aging test chamber
Model	LR-B200
Interior size	W1140 X H350 x D400mm
Exterior size	W1300 X H500 x D500mm
Controller	LCD 7-inch touch screen controller, with programmable temp., humid., UV(sun), and time and Fix mode of 2 running modes. USB interface Operation button Alarm indicator Irradiation timer
Temp. control mode	PID self-adjustment SSR control
Temp. range	RT+10℃ ~ 70℃ (adjustable)
Temp. deviation	±2.0℃
Temp. fluctuation	±0.5℃
Temp. uniformity	±1℃
Temp. fluctuation	±0.5℃
Center distance between lamps	75mm±15mm
Distance between samples and lamps	100 ~ 50mm±30mm
Irradiation level	≤1.1W/m² adjustable
Adjustment	Test period for Temp., irradiation can be adjustable
Irradiation lamp	UVA-340, L=1200/40W, 4pcs (average service life: 1600hrs)
Temp. control method	PID self-adjustable SSR control
UV Wavelength	UVA-340: 315~400nm;
Test time	0~999 H 99 min (adjustable)
Black board Temp.	50℃ ~ 70℃ (temperature inside the chamber plus 20℃ ~ 25℃)
