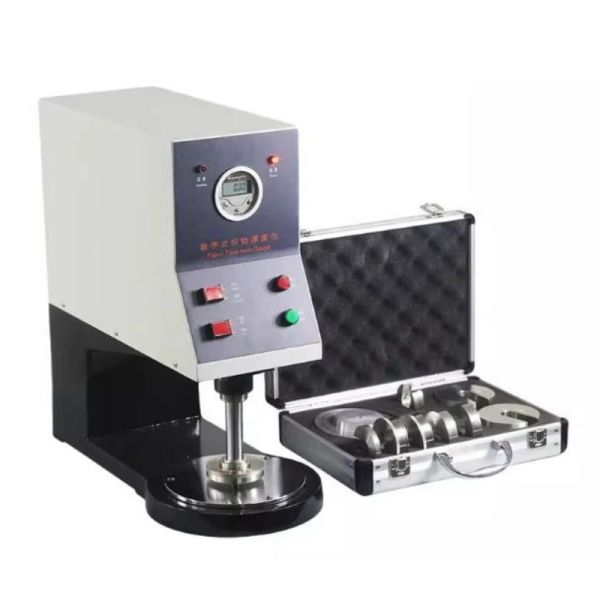

Fabric Thickness Meter Digital Fabrics Thickness Gauge Textile Thickness Meter Filter Cloth Non-woven Thickness Tester Machine
I. Introduction
This instrument is mainly used for measuring the thickness of various textiles and textile products under different pressures, and it can also be used for measuring the thickness of other uniform thin materials.
2. Applicable standard: GB/T3820.
Fabric Thickness Meter Digital Fabrics Thickness Gauge Textile Thickness Meter Filter Cloth Non-woven Thickness Tester Machine
Technical Specification
| Thickness Testing Range | 0.01mm - 25.00mm; 0.001mm - 25mm; 0.01mm - 50mm; 0.001mm - 50mm |
| Minimum Graduation Value | 0.01mm; 0.001mm |
| Pressing Foot Diameter and Area | Diameter: Φ11.28mm, Φ50.48mm, Φ56.42mm, Φ112.84mm; Area: 100mm², 2000mm², 2500mm², 10000mm² |

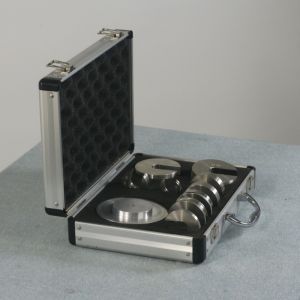

| Weighting Weights | 5cN, 10cN, 50cN, 100cN, 200cN, 500cN (a total of 6 types) |
| Weight Application Time | 10 seconds, 30 seconds |
| Power Supply | AC 220V ± 10% 50Hz |
| Net Dimension | 410mm × 160mm × 395mm (Note: "Net volume" is adjusted to "Net dimension" based on parameter type, referring to the device's physical size rather than volume) |
| Net Weight | 25kg |
| Internal Dimensions of Wooden Box | 600mm × 480mm × 330mm |
